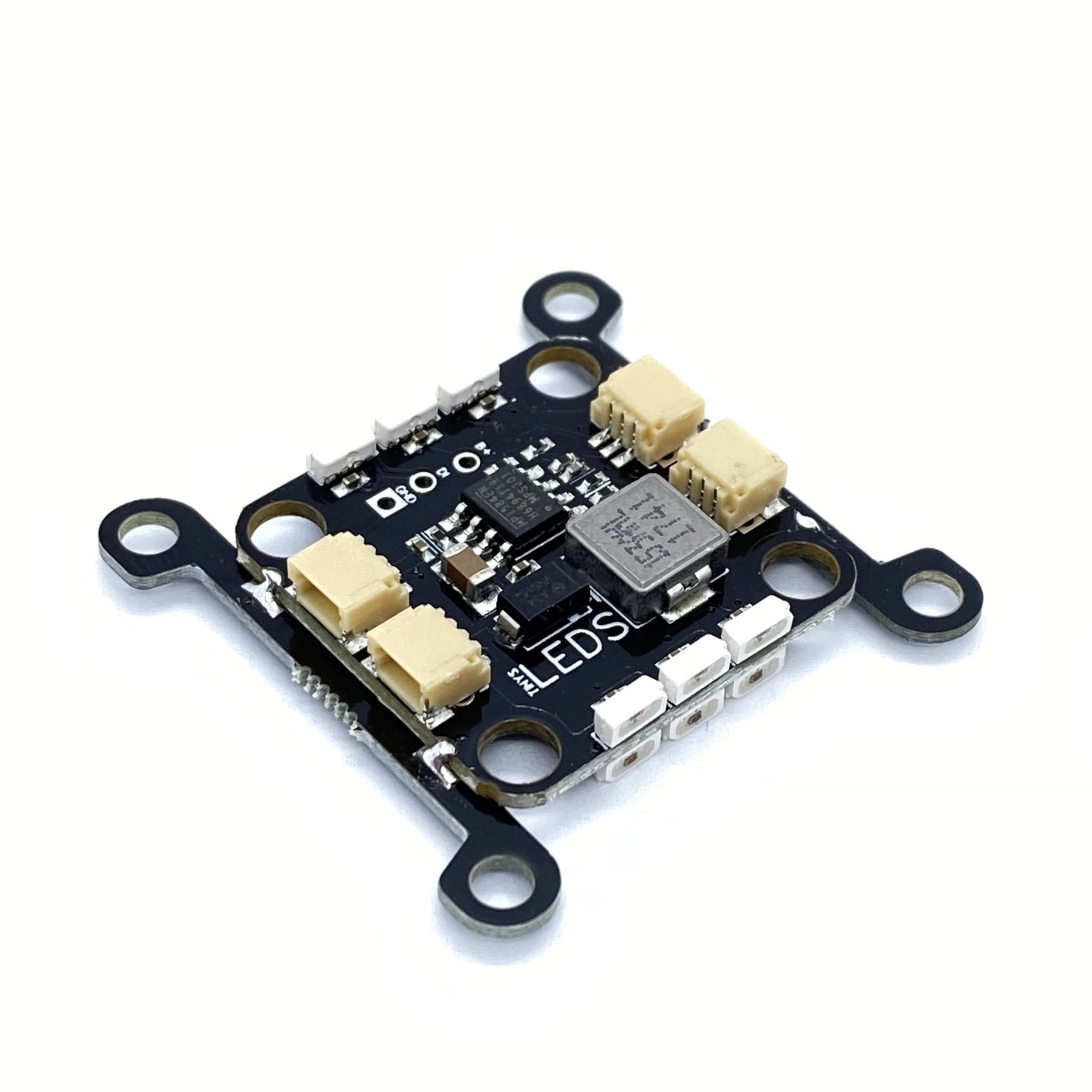

Tiny Rainbow LED Power Board PDB

€13.30

In stock, shipping in 1-2 working day(s)!

Features:

  • 5 volt 3 Amp Regulator
  • 12 Side Fire LEDs, ( 6 each side)
  • Mounting for 20×20 and adapter included for 30×30
  • JST-SH Connectors for Outputs to each arm.
  • Solder pads on bottom of board for extra leds. and backup if connector breaks during crash.
  • Supports up to 44 LEDs
  • Connect up 8 of the Tiny Rainbow V2 with the LED Wire kit and add 44 leds to your quad.

Instructions:

Wire 2-6s Input to B+ pad, Wire GND and LED DI to the Flight Controller. Setup betaflight as 1 LED ( All 12 on board act as 1 led in parallel, This is better for racing)

More Product details coming soon

Weight:  3.5grams

Dimensions: 20x20mm mounting holes. 25x25mm board, 30.5×30.5mm mounting adapter

Contains:

1x LED Power Board v1
1x 20 x 20mm to 30 x 30mm Mounting adapter
SKU: FPV 1852 Categories: Electronics, LED
