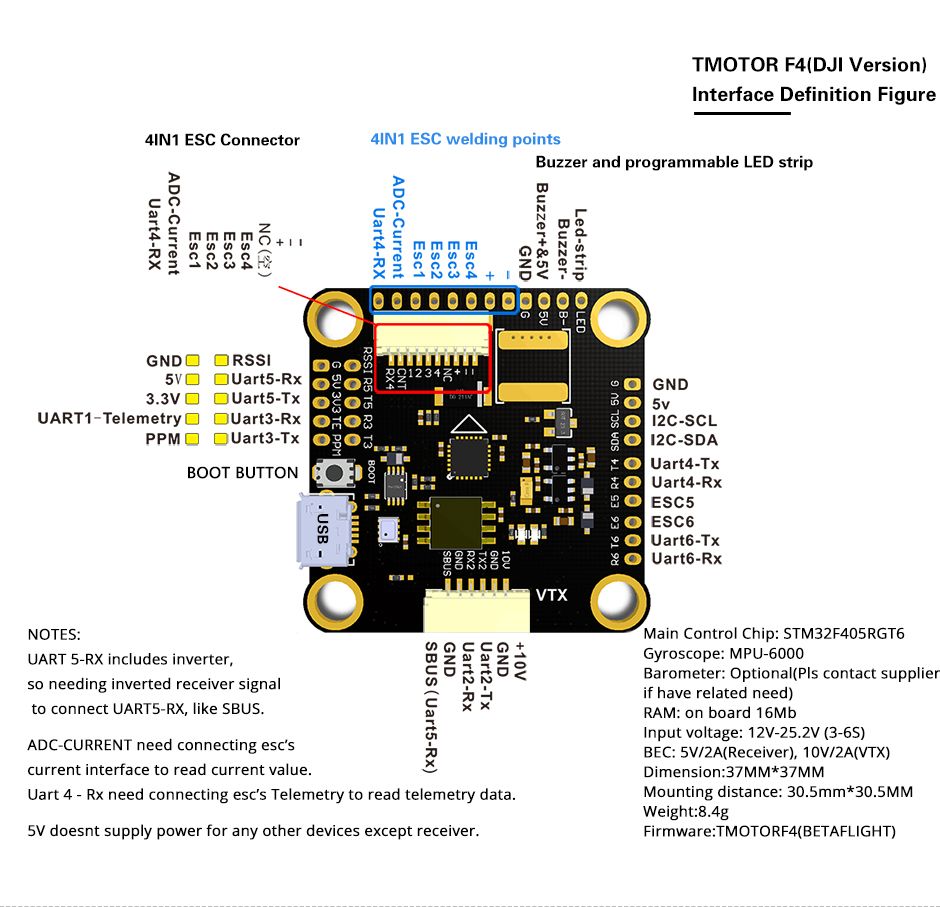

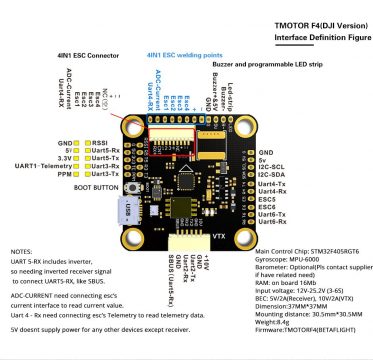

Details
MCU: STM32F405RGT6
Gyroscope: MPU-6000
Barometer: Optional
Blackbox: On-Board 16Mb
Input Voltage: 12v-25.2v (3-6S)
Firmware: T-Motor F4 (Betaflight)
BEC: 5v/2A (Receiver), 10v/2A (VTX)
Dimension: 37x37x7mm
Mounting Pattern: 30.5×30.5mm
Weight: 8.4g
IMPORTANT
Attention! If the flight controller starts only from, the error phenomenon can only be accepted under warranty if no solder has been made to the flight controller. Please always check before soldering! Defects caused by soldering cannot be repaired under warranty.
