On stock!

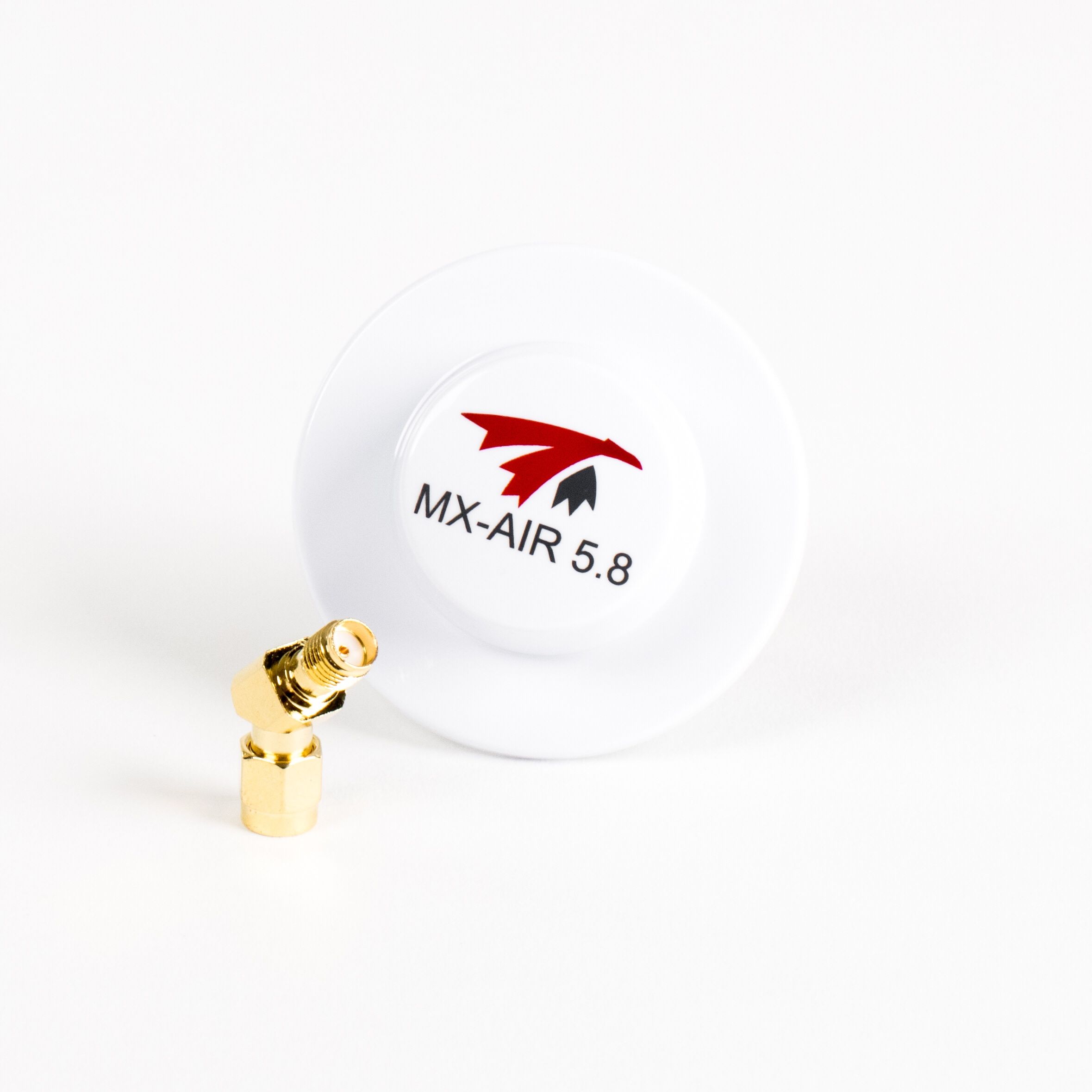

TrueRC MX-AIR 5.8 GHZ SMA (RHCP)

€29.10

In stock, shipping in 1-2 working day(s)!

What is Airworthy?

If you want quality products, but you don’t trust in Youtube review videos, trust in the Airworthy Crew!

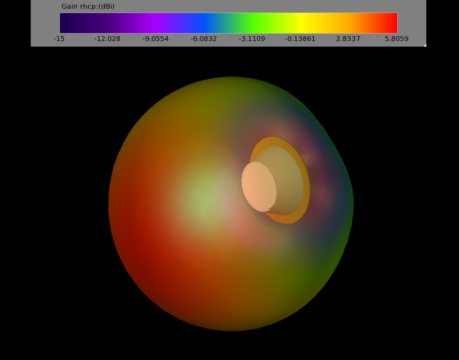

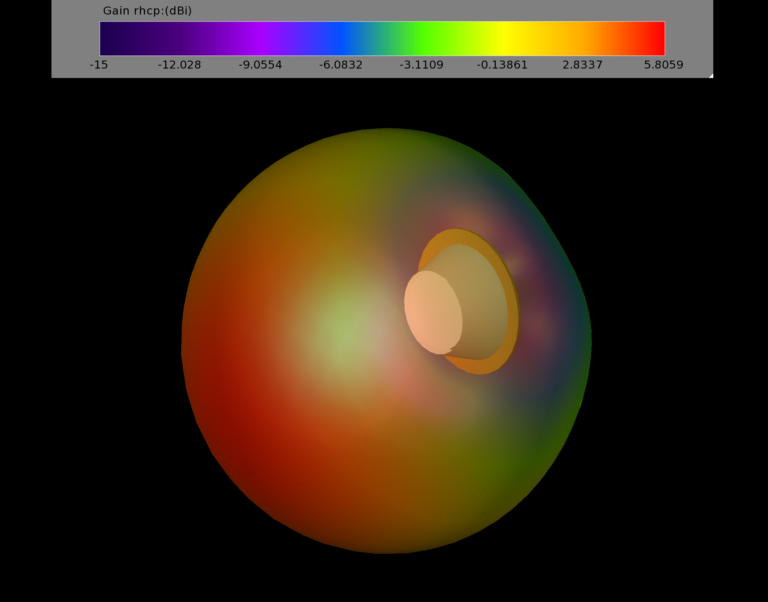

The HemiX-Air or “MX-Air” for short, is a hemispheric antenna. Hemispheric means “half-sphere” or an antenna with a true 180deg coverage. Not only we doubled the range directly off the sides, but considerably augmented the axial ratio at these extreme angles. Pointed at the sky, this antenna can even replace an omni if need be. Perfect of freestyle, racing ot just going out a few kMs.

SPECS:
Gain: 5.8dbic
Cross-Polar Rejection: -10 to -25dB (2.6%)
Bandwidth: 5.0GHz-6.0GHz
Radiation Efficiency: 99%
Beam-width*: 180deg
Beam-width @-3dB**: 110deg
SWR: <=1.5:1
Weight: 13.2g
Size: 54mm x 26mm
Connector: SMA male

SKU: FPV 3047 Categories: Airworthy, Antennas, FPV receiver antennas
